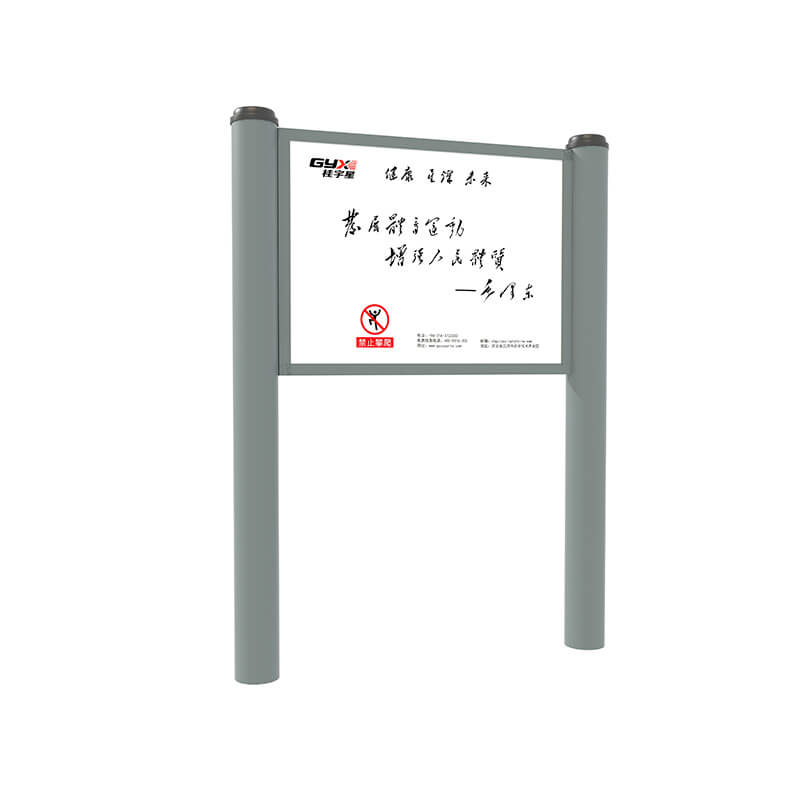

GYX-L07 Instruction Board

This equipment is only used for warning instructions before the use of equipment

Directly buried, the main column adopts a national standard steel pipe with a diameter of 114mm and a wall thickness of 3mm;

◆ Corner steel with a specification of 30*30mm and 3mm of wall thickness;

◆ The frame steel pipe adopts the specifications □ 25*25mm, and the wall thickness 2mm square tube;

◆ Explain that the card is corroded with 304 stainless steel, the size is 600*800m, and the wall thickness is 1.2mm.

◆ The nameplate of the equipment is corroded with full stainless steel, the size is 220*80mm, the pull rivets are strong, and the edges are close to the column.

Avoid hook damage;

•
