Free standing wall bars GYX-L14 Supplier

Specification:

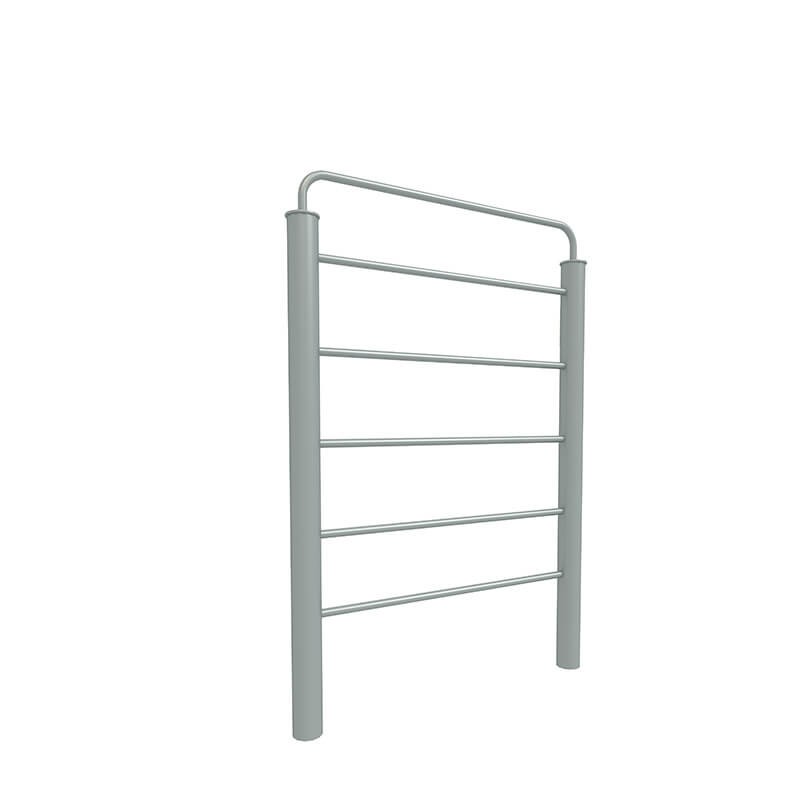

GYX-L14 Free standing wall bars

[Specification]: 1423 × 114 × 2162 (mm)

[Scope of safe use]: 5250 × 4000 (mm)

[How to use]: Training can be performed elastic pressing legs, squatting, knee lifting, climbing and so on.

[Main functions]: Stretch leg muscles, conduct warm -up or sorting exercises, strengthen abdominal muscles, and promote the flexibility of limbs.

【The main technical parameters】:

◆ Direct buried type, the main column adopts a national standard steel pipe with a diameter of 114mm and a wall thickness of 3mm;

◆ The national standard steel pipe with a diameter of 32mm and a thickness of 3m is 300mm, 340mm, 340mm, 340mm, 300mm, all overall welding, firm and durable;

◆ Equipment columns are buried in depth of not less than 600mm, and the size of the ground is not less than 600*600*700mm;

◆ The thickness of the buffer layer is 300mm, and the distance between the bottom horizontal pole is greater than 400mm, which is safer and reliable to avoid accidental damage;

◆ Equipment nameplate is corroded with full stainless steel, the size is 220*80mm, the pull rivets are strong, the edges are close to the column, the QR code logo is corroded with all stainless steel, the size is 90*60, and the wall thickness is 0.8mm to avoid causing damage; ◆ The top of the column is closed, and the thickness of the closed disc is greater than 5m to avoid entering the rain;

◆ The equipment is tested in accordance with the GB19272-2011 standard, and stability tests are tested, and the standard requirements are met.

◆ There is no hook, no crushing point, no shear point, no card clip, the gap between the pores and diameters of each place meets the GB19272-2011 standard;

◆ The equipment uses a fully automatic CNC sawing bed, which is highly efficient and accurate. The bending process uses a CNC bending machine. The angle is accurate and beautiful. Mixed gas welding, beautiful welding shape, straight welding tract, no need to polish, and equipped with dust collection and treatment systems, purify the air of the workshop, ensure the health of workers, the surface treatment uses the throwing process, thorough rust removal, increase the surface area of the workpiece, enhance the enhancement Plastic powder adhesion, outer surface of the Forbidden City Green Environmental Protection Static Powder, using imported static spraying equipment, uniform powder, strong powder adhesion, plastic surface resistance, dampness and heat, anti -aging, corrosion resistance, beautiful appearance, suitable for humidity and sour rain Environment, the coating formula of the product does not contain toxic elements. Powder recovery uses a whirlwind centrifugal machine powder recovery system.

◆ Equipment packaging is the internal thickened air bubble film entangled, and the external packaging with two -layer packaging with wrapped wrapped, which effectively blocks bumps in the transportation to cause the equipment to be intact.
