Manufacture Triple pull up station GYX-L29

Specification:

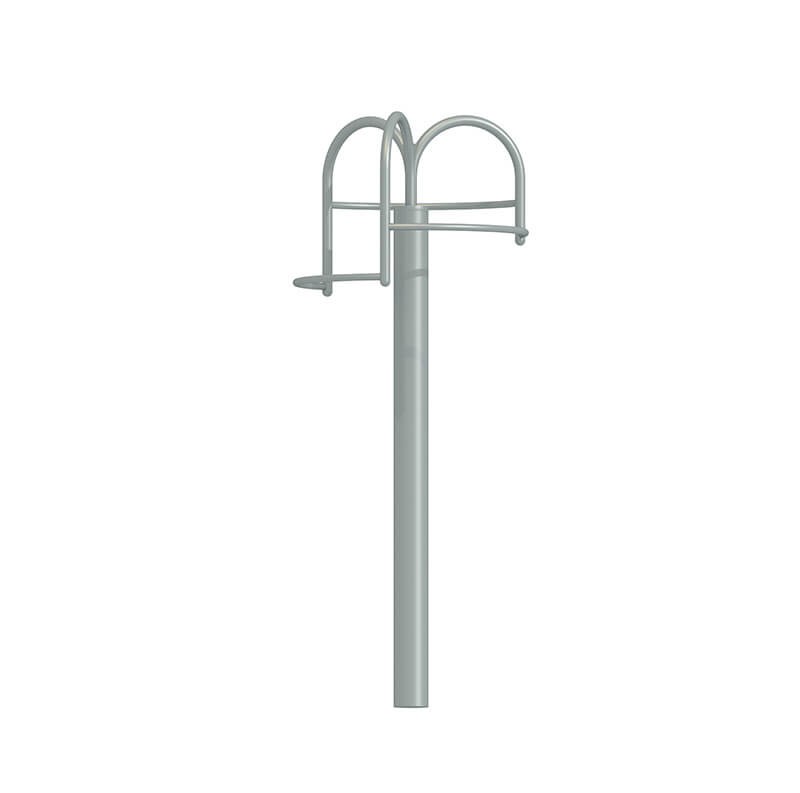

GYX-L29 triple ring traction frame

[Specification]: 1055x1047x2544 (mm)

[Scope of safe use]: 5000X5000 (mm)

[Usage method]: Pull up the handle with both hands, holding or holding the handle, slowly restore, repeat this action.

[Main functions]: Enhance the strength and flexibility of the upper limbs, back, shoulder strap muscle groups; improve the ability of shoulder, elbow, wrist, and joint movement.

【The main technical parameters】:

◆ Direct buried type, the main column adopts a national standard steel pipe with a diameter of 114mm and a wall thickness of 3mm;

◆ The U -shaped bend uses a national standard steel pipe with a diameter of 48mm and a wall thickness of 3mm. The circular curve uses a national standard steel pipe with a diameter of 32mm and a wall thickness of 3mm. The three ring -shaped bending gaps are 200mm, and the height of the ground is 1800mm, 2000mm, and 2200mm.

◆ The nameplate of the equipment is corroded with full stainless steel, with a size of 220*80mm, sturdy rivets, and the edges are close to the column to avoid causing hook damage;

◆ The equipment is tested in accordance with the GB19272-2011 standard, and stability tests are tested, and the standard requirements are met.

◆ There is no hook, no crushing point, no shear point, no card clip, the gap between the pores and diameters of each place meets the GB19272-2011 standard;

◆ The equipment has a 3 -stop movement, and only 3 people can be used at the same time;

◆ The depth of the equipment is not less than 600mm, and the size of the land is not less than 500*500*700mm;

◆ The equipment uses a fully automatic CNC sawing bed, which is highly efficient and accurate. The bending process uses a CNC bending machine. The angle is accurate and beautiful. Mixed gas welding, beautiful welding shape, straight welding tract, no need to polish, and equipped with dust collection and treatment systems, purify the air of the workshop, ensure the health of workers, the surface treatment uses the throwing process, thorough rust removal, increase the surface area of the workpiece, enhance the enhancement Plastic powder adhesion, outer surface of the Forbidden City Green Environmental Protection Static Powder, using imported static spraying equipment, uniform powder, strong powder adhesion, plastic surface resistance, dampness and heat, anti -aging, corrosion resistance, beautiful appearance, suitable for humidity and sour rain Environment, the coating formula of the product does not contain toxic elements. Powder recovery uses a whirlwind centrifugal machine powder recovery system.

◆ Equipment packaging is the internal thickened air bubble film entangled, and the external packaging with two -layer packaging with wrapped wrapped, which effectively blocks bumps in the transportation to cause the equipment to be intact.
