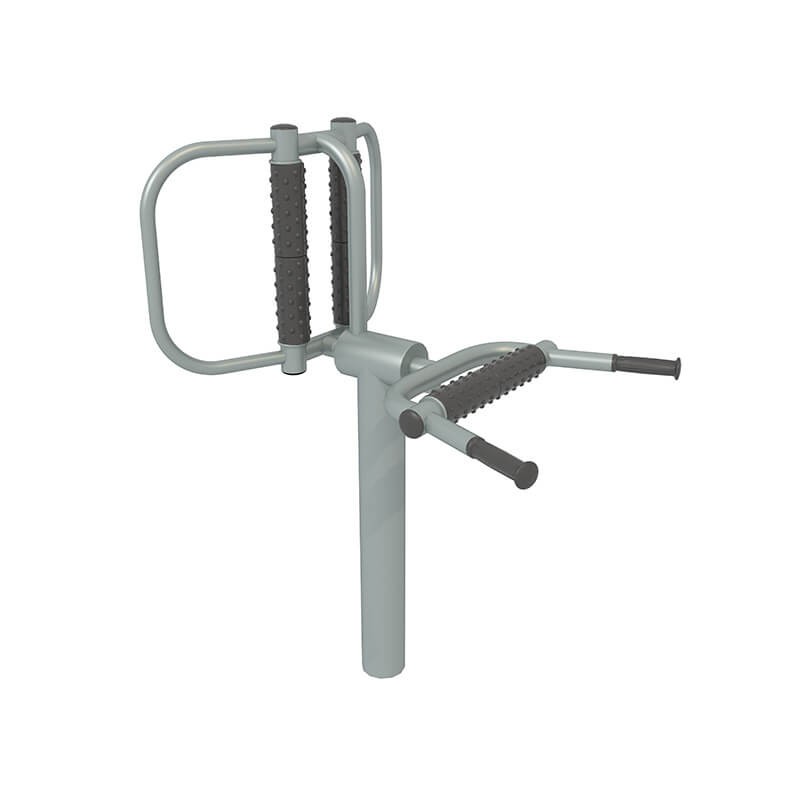

Outdoor gym equipment Waist and back massager GYX-L10

Specification:

GYX-L10 Waist and back massager

[Specification]: 935 × 755 × 1418mm

[Scope of safe use]: 4000 × 3800 (mm)

[How to use]: The user stands on the back of the equipment, holds the handrail, the back is close to the massage stick, moves slowly left and right, massage back muscles, repeatedly exercise, the user stands back to the equipment, the waist is close to the massage stick, and the upper and lower squats Massage your waist and shoulder muscles and exercise repeatedly.

[Main function]: Relax the muscles of the waist and back of the user can effectively eliminate the muscle fatigue of the back, the neck and the shoulder, the neck, regulate the nervous system, improve the blood circulation of the waist and back of the user, clear the meridians, make the air flow smooth Essence

【The main technical parameters】:

◆ Direct buried type, the main column adopts a national standard steel pipe with a diameter of 114mm and a wall thickness of 3mm;

◆ The left and right handrails of the waist adopt a national standard steel pipe with a diameter of 42mm and a wall thickness of 3mm. The handlebar handle is used to reduce the pipe retractable technology to shrink the diameter of 42mm to 32mm in diameter to install the handle. Convenient, durable;

◆ The national standard steel pipe with a diameter of 42mm and a wall thickness of 3mm in the waist semicircular tube.

◆ The back armrest tube adopts a national standard steel pipe with a diameter of 32mm and a wall thickness of 2.5;

◆ The massage shaft is welded by welding with a diameter of 27mm. It is closely coordinated with the massage stick and rotates smoothly;

◆ A total of 6 small massage sticks are used, and the edge of the equipment and the sharp corners use a rounded corner transition of not less than 3mm.

◆ The massage stick is made of PVC, with moderate surface hardness, 182mm in length, 76mm in diameter, a massage point diameter of 13mm, and a massage point height of 3mm, which meets the requirements of human massage;

◆ The handlebar is made of vulcanized rubber, which is good for anti -aging. There are also anti -theft measures to be safe and durable;

◆ The nameplate of the equipment is corroded with full stainless steel, with a size of 220*80mm, sturdy rivets, and the edges are close to the column to avoid causing hook damage;

◆ The equipment is tested in accordance with the GB19272-2011 standard, and stability tests are tested, and the standard requirements are met.

◆ There is no hook, no crushing point, no shear point, no card clip, the gap between the pores and diameters of each place meets the GB19272-2011 standard;

◆ The equipment has a 2 -stop movement, and only 2 people can be used at the same time;

◆ Equipment columns are buried in depth of not less than 500mm, and the size of the ground is not less than 500*500*600mm;

◆ The equipment uses a fully automatic CNC sawing bed, which is highly efficient and accurate. The bending process uses a CNC bending machine. The angle is accurate and beautiful. Mixed gas welding, beautiful welding shape, straight welding tract, no need to polish, and equipped with dust collection and treatment systems, purify the air of the workshop, ensure the health of workers, the surface treatment uses the throwing process, thorough rust removal, increase the surface area of the workpiece, enhance the enhancement Plastic powder adhesion, outer surface of the Forbidden City Green Environmental Protection Static Powder, using imported static spraying equipment, uniform powder, strong powder adhesion, plastic surface resistance, dampness and heat, anti -aging, corrosion resistance, beautiful appearance, suitable for humidity and sour rain Environment, the coating formula of the product does not contain toxic elements. Powder recovery uses a whirlwind centrifugal machine powder recovery system.

◆ Equipment packaging is the internal thickened air bubble film entangled, and the external packaging with two -layer packaging with wrapped wrapped, which effectively blocks bumps in the transportation to cause the equipment to be intact.
